Electric vehicles (EVs) are revolutionizing transportation with their promise of cleaner energy and reduced carbon footprints. However, one of the key challenges to their widespread adoption is the charging infrastructure—particularly the speed of charging. Solid-State Transformer (SST) technology has emerged as a transformative innovation to address this challenge, offering faster, more efficient, and compact charging solutions. This article explores the role of SST technology in fast EV charging, delving into its features, benefits, and implications for the future of electric mobility.
Understanding SST Technology
Solid-State Transformers (SSTs) represent a significant evolution in power electronics. Unlike traditional low-frequency transformers (LFTs) that rely on heavy copper and iron cores, SSTs use power semiconductor devices and high-frequency transformers. This allows SSTs to provide higher power density, better efficiency, and a plethora of functionalities that traditional transformers cannot achieve.
Key Features of SST Technology
- High Power Density: By operating at higher frequencies, SSTs significantly reduce the size and weight of transformers.
- Efficiency: SSTs can achieve up to 98.5% efficiency, minimizing energy losses during charging.
- Bidirectional Power Flow: SSTs enable energy to flow both to the EV battery and back to the grid, supporting vehicle-to-grid (V2G) applications.
- Voltage Regulation: SSTs provide precise voltage control, ensuring optimal charging conditions for EV batteries.
- Integration with Renewables: SSTs can seamlessly integrate renewable energy sources like solar and wind into the charging infrastructure.
The Evolution of EV Charging Infrastructure

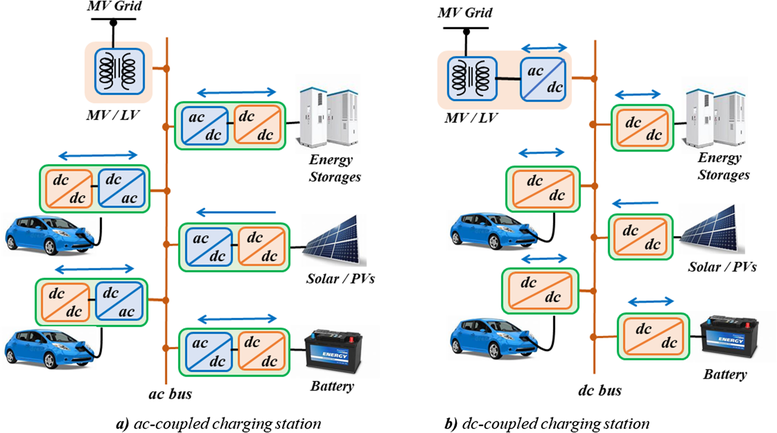

Challenges with Traditional Transformers
Traditional charging stations rely on LFTs, which are bulky and costly. These transformers step down medium-voltage (MV) power to levels suitable for EV charging. However, their limitations include:
- Large footprint and high installation costs.
- High energy losses during conversion.
- Inability to handle high power levels required for extreme fast charging (XFC).
- Limited integration capabilities with modern energy systems, such as renewable energy and energy storage.

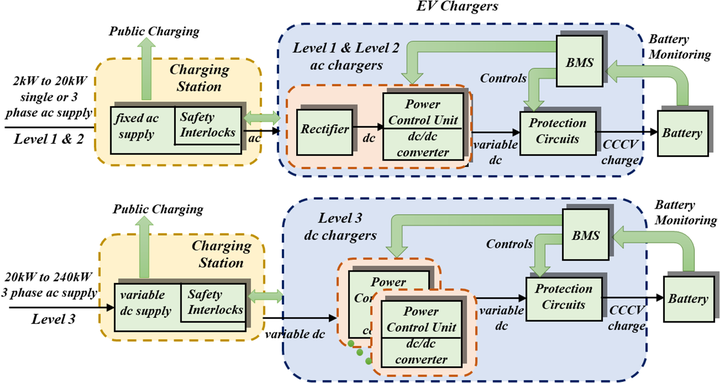

The Shift to Off-Board Chargers
Off-board chargers have become a preferred choice for EV infrastructure. These chargers house power conversion components outside the vehicle, allowing for higher power levels (up to 350 kW or more). SSTs are ideal for such applications, as they:
- Replace the need for traditional LFTs.
- Reduce the number of conversion stages, improving efficiency.
- Enable faster charging times, mimicking the experience of refueling a gasoline vehicle.
The Role of SST Technology in Fast Charging
Enabling Extreme Fast Charging (XFC)
SSTs play a pivotal role in extreme fast charging by addressing the high power and efficiency requirements. For instance, a 350 kW SST-based charger can recharge an EV battery for 200 miles of range in just 10 minutes. This performance is crucial for alleviating “range anxiety” and making EVs a viable option for long-distance travel.
Integration with Medium-Voltage Grids
SSTs can directly connect to medium-voltage grids, eliminating the need for separate step-down transformers. This not only reduces infrastructure costs but also improves system efficiency. By integrating SSTs, charging stations can handle higher power demands while maintaining grid stability.
Modular Design for Scalability
SST-based systems are inherently modular, allowing for easy scalability. Additional modules can be added to meet increased power requirements without overhauling the entire system. This modularity is particularly beneficial for future-proofing charging stations as EV adoption grows.
Technical Insights into SST-Based Charging
Converter Topologies

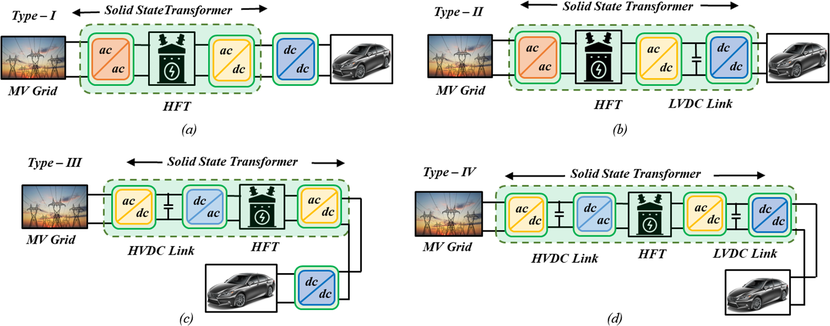

SSTs utilize advanced power converter topologies to achieve their functionality. Common configurations include:
- Single-Stage Conversion: Offers simplicity but lacks features like reactive power compensation.
- Two-Stage Conversion: Provides better efficiency and reactive power control, with either low-voltage (LV) or high-voltage (HV) DC links.
- Three-Stage Conversion: Combines HV and LV DC links, offering the highest efficiency and functionality.
High-Frequency Transformers
High-frequency transformers in SSTs enable galvanic isolation while significantly reducing size and weight. These transformers operate at much higher frequencies compared to traditional transformers, achieving the desired voltage conversion ratios with smaller cores and windings.
Wide-Bandgap Semiconductors
The adoption of wide-bandgap (WBG) semiconductors like silicon carbide (SiC) and gallium nitride (GaN) has been instrumental in the development of SSTs. These materials allow for higher voltage and temperature operation, lower switching losses, and improved efficiency.
Advantages of SST-Based EV Charging
- Faster Charging: Reduced charging times, akin to refueling a traditional vehicle.
- Compact Infrastructure: Smaller, lighter components reduce installation space and costs.
- Energy Efficiency: Minimal energy losses ensure sustainable operation.
- Grid Stability: Enhanced power quality and voltage regulation support grid stability.
- Future-Ready: Compatibility with renewable energy and V2G technologies makes SSTs a forward-looking solution.
Real-World Applications and Case Studies
North Carolina State University Demonstration
Researchers at North Carolina State University developed a 50 kW SST-based fast charger capable of directly connecting to a 2.4 kV MV grid. This system demonstrated a 30-fold reduction in volume and a 50% reduction in power losses compared to conventional systems.
Tesla Supercharger Comparison
SST-based solutions have been compared to Tesla’s Supercharger stations. For the same power ratings, SST systems offer a smaller footprint, lower energy losses, and better integration capabilities, proving their superiority in high-power applications.
ABB Terra HP
The ABB Terra HP, a 350 kW charging system, exemplifies the potential of SST technology in commercial settings. It achieves high efficiency and fast charging speeds, making it suitable for highway corridors and urban hubs.
Challenges and Opportunities
Technical Challenges
- High initial costs due to advanced materials and components.
- Need for fast-acting protective devices to safeguard against faults.
- Integration challenges with existing grid infrastructure.
Opportunities for Innovation
- Research into more cost-effective WBG semiconductors.
- Development of standardized protocols for SST-based systems.
- Advances in energy storage integration for enhanced grid support.
Solid-State Transformer (SST) technology is rapidly advancing, revolutionizing the landscape of electric vehicle (EV) charging infrastructure. Recent developments worldwide highlight the potential of SSTs to enable ultra-fast charging, enhance grid integration, and support the widespread adoption of electric mobility.
Recent Global Developments in SST Technology
- India’s First Commercial-Scale SST Unveiled In December 2024, Lotus Wireless Technologies (LWT) India, in collaboration with the Austrian Institute of Technology (AIT), unveiled India’s first commercial-scale Medium Voltage Solid State Transformer. Demonstrated at LWT’s Aganampudi plant, this technology facilitates megawatt-scale superfast EV charging, potentially reducing charging times from hours to minutes. Economic Times
- Delta Electronics’ 400 kW SST-Based Charger Delta Electronics has been at the forefront of SST-based charging solutions. In October 2022, they demonstrated a next-generation silicon carbide (SiC) MOSFET SST-based 400 kW extreme fast EV charger. This system connects directly to medium-voltage distribution, providing faster and more efficient charging compared to lower voltage chargers. The charger boasts grid-to-vehicle energy efficiency as high as 96.5% and supports charging currents up to 500 Amps. Delta Americas
- Amperesand’s Solid-State Transformers Amperesand, a company specializing in solid-state transformers, is developing solutions aimed at alleviating electric grid bottlenecks. Their technology is particularly suited for EV charging applications, offering smaller size and lower costs compared to traditional transformers. This innovation is expected to support the rapid deployment of EV charging infrastructure globally. Chargedevs
Research and Technological Advancements
Academic and industry research continues to drive SST technology forward:
- Transformer Design for SST-Based EV ChargingRecent studies have focused on optimizing transformer designs for SST-based EV charging stations. These designs aim to replace traditional line-frequency transformers, offering more controllability, power factor correction, and significant reductions in size and weight. IEEE Xplore
- Solid-State Transformer-Based Fast Charging StationsResearch has proposed SST-based power electronic architectures for fast charging various categories of plug-in electric vehicles. These architectures integrate medium-voltage grids without the use of traditional transformers, enhancing efficiency and reliability in EV charging infrastructure. IEEE Xplore
Implications for the Future of EV Charging
The advancements in SST technology signify a transformative shift in EV charging infrastructure:
- Ultra-Fast ChargingSSTs enable ultra-fast charging capabilities, significantly reducing the time required to recharge EVs. This development addresses one of the major barriers to EV adoption by enhancing convenience for users.
- Grid Integration and StabilityThe ability of SSTs to connect directly to medium-voltage grids and provide reactive power compensation improves grid stability and supports the integration of renewable energy sources. This feature is crucial for developing sustainable and resilient energy infrastructures.
- Scalability and DeploymentThe compact size and modular nature of SST-based systems facilitate easier deployment and scalability of EV charging stations. This flexibility is essential to meet the growing demand for EV charging infrastructure worldwide.
Conclusion
The continuous advancements in Solid-State Transformer technology are poised to revolutionize the EV charging landscape. With the potential for ultra-fast charging, improved grid integration, and scalable infrastructure, SSTs are set to play a pivotal role in accelerating the global adoption of electric vehicles and the transition to sustainable transportation.
Note: The information provided is based on the latest available data as of December 2024. For the most current developments, readers are encouraged to consult recent publications and industry reports
